Your Guide to Solar Powered DIY Projects

So, you're thinking about building your own solar power system? That's fantastic. It might seem like a huge undertaking, but it’s more achievable than you’d guess. It really just boils down to a few key stages: picking the right parts, figuring out how much power you actually need, and then putting it all together safely. With the kits and guides available today, you can power anything from a few lights in your shed to a full-on off-grid cabin.

Kicking Off Your DIY Solar Project

Welcome to the world of do-it-yourself solar power. I get it—the thought of building your own energy source can feel a little daunting at first. But trust me, with modern components and so much shared knowledge out there, it's never been easier to get started. My goal here is to cut through the confusing tech-speak and show you that building a functional system is something you can absolutely do.

This is about more than just trimming your electric bill. It's about a new kind of freedom and the incredible satisfaction that comes from building something with your own two hands. Think about it: powering your camping trips, running tools in a workshop miles from an outlet, or just having a solid backup when the power goes out. All from a system you built yourself.

Why Is Everyone Suddenly Building Their Own Solar?

The buzz around personal solar projects isn't happening in a vacuum; it’s part of a massive global shift. As the world moves toward cleaner energy, the market for solar parts has blown up, making everything cheaper and easier to get your hands on. This boom has put some seriously powerful tech within reach for everyday hobbyists and homeowners.

The numbers are pretty staggering. The global solar energy systems market was valued at USD 255.4 billion in 2024 and is expected to rocket to USD 1.15 trillion by 2034. This growth is fueled by everything from government programs to a huge consumer demand for their own power sources—including the very solar powered DIY setups we're talking about right now. You can dig into the data yourself over at Precedence Research.

This explosion in the market is a huge win for the DIY community. More manufacturing means lower prices and better tech. Honestly, there has never been a better or more affordable time to start building.

What Can You Realistically Power with a DIY Setup?

A lot of people think DIY solar is just for small-time stuff, like charging a phone on a camping trip. And while that's a great place to start, you can aim much, much higher. With the right planning, you can build a system that can handle some serious work.

Here are a few real-world examples of what's possible:

• Power an off-grid cabin: Run your lights, a small fridge, and even a water pump.

• Deck out a camper van: Keep all your batteries topped off for endless adventure on the road.

• Create a workshop power source: Fire up drills, saws, and other tools without being tethered to an outlet.

• Build a rock-solid emergency backup: Keep your essentials running smoothly during a blackout.

This guide will give you the solid foundation you need to tackle any of these projects. We're going to focus on the practical, step-by-step knowledge that turns your solar dream into a working reality.

Choosing Your Tools and Solar Components

Alright, let's get into the fun part: picking out the gear. A successful solar powered DIY project is really built twice—first on paper when you're planning, and then for real when you assemble it. Getting the right components and tools from the get-go is the most crucial part of that first build. Think of this as your practical shopping list, where we move past the theory and into the tangible items that will bring your system to life.

Every off-grid setup, whether for a camper van or a remote cabin, relies on four key pieces of hardware working in harmony. Let's break down what they are and what you need to look for.

The Four Pillars of Your Solar System

The heart of your system starts with the solar panels. These are what actually capture the sunlight. For most DIY projects, your main choice will be between monocrystalline and polycrystalline panels. I almost always recommend monocrystalline; they’re a bit more efficient and perform much better on overcast days, which is a huge plus if you have limited roof space.

Next up is the charge controller, which I like to call the brain of the whole operation. It sits between your panels and your batteries, managing the flow of electricity to prevent overcharging. This is not a place to cut corners. An MPPT (Maximum Power Point Tracking) controller is a smart upgrade over a basic PWM (Pulse Width Modulation) model because it can squeeze up to 30% more power out of your panels. That’s a difference you’ll really feel on a cloudy day.

Your batteries are your energy piggy bank. They store the power your panels generate so you can use it after the sun goes down. While traditional lead-acid batteries are cheap upfront, I’ve found that LiFePO4 (Lithium Iron Phosphate) batteries are a much better investment in the long run. They last longer, you can drain them further, and they are significantly lighter.

Finally, you need an inverter. This handy box takes the DC (Direct Current) power from your batteries and converts it into the AC (Alternating Current) that your everyday appliances need. For anything with sensitive electronics, like a laptop or a TV, you absolutely need a pure sine wave inverter. A cheaper modified sine wave inverter might work for simple motors or lights, but it can damage more complex devices.

Key Takeaway: If there are two places you shouldn't skimp, it's the charge controller and the inverter. A quality MPPT controller and a pure sine wave inverter will protect your batteries and electronics, ensuring your system runs smoothly and safely for years to come.

Essential Solar DIY Component Comparison

To help you visualize how these parts fit together, I've put together a quick comparison table. It outlines each component's job and the common types you'll encounter.

Choosing the right combination from this table is the foundation of a reliable system that meets your specific power needs.

Gathering Your Essential Tools

Now, beyond the big four components, you'll need a few essential tools to put it all together. You don’t need a fully stocked professional workshop, but having these items on hand will make the installation process much safer and a whole lot less frustrating.

Here's my must-have tool list for any solar build:

• Multimeter: This is completely non-negotiable. You'll use it to check voltage, confirm polarity (so you don't fry anything!), and troubleshoot connections. It's your number one safety tool.

• Wire Strippers and Crimpers: Clean connections are key to a reliable, low-resistance system. A good crimper ensures your wires won't pull loose.

• Socket Wrench Set: You'll need this for tightening down panel mounts and securing battery terminals.

• Drill with Various Bits: Essential for mounting all your components and running wires through walls or bulkheads.

The great news for anyone starting a solar project today is that components are more available and affordable than ever. Global solar manufacturing capacity is expected to reach a staggering 1.8 terawatts (TW) annually by 2025. This explosion in production, with about 75% of the new capacity coming from China, has driven down prices significantly. You can learn more about this global growth in solar manufacturing and what it means for consumers.

If sourcing individual parts seems daunting, pre-packaged kits can be a fantastic way to simplify the process. To see if that's a good route for you, check out our guide on solar panel kits.

How to Size Your System for Actual Use

When you're planning a solar powered diy project, the biggest mistake I see people make is pure guesswork. Building a system that’s too small is a recipe for frustration—and a dead battery. On the other hand, oversizing your setup is just throwing money away.

The secret to getting it just right is to do a quick but honest energy audit before you buy a single piece of gear. It all comes down to one simple question: how much power do you really use?

To figure this out, we need to calculate your daily energy consumption in a unit called watt-hours (Wh).

Conducting Your Personal Energy Audit

Grab a piece of paper or open a spreadsheet and start making a list of every single device you want to power. For each item, you need two pieces of information: its power draw in watts (check the label or power adapter) and how many hours you’ll realistically use it each day.

The math from here is straightforward. To find the daily watt-hours for any appliance, you just multiply its wattage by the hours you'll use it.

• Formula: Appliance Watts × Hours of Daily Use = Daily Watt-Hours

Let's walk through a practical example. Say you're putting together a small system for an off-grid workshop.

Workshop Energy Audit Example:

• LED Lights (2): 10W each × 4 hours/day = 80 Wh

• Cordless Tool Charger: 60W × 2 hours/day = 120 Wh

• Small Fan: 30W × 3 hours/day = 90 Wh

Add it all up, and you get a total daily energy need of 290 Wh. This number is the bedrock of your entire system design. It’s the minimum target your solar setup has to hit every day to keep things running.

Pro Tip: I always recommend adding a 20-25% buffer to your final watt-hour number. This safety margin covers inevitable system inefficiencies and gives you a little juice for those times you need to run things a bit longer. For our workshop, that means we should actually plan for about 360 Wh per day.

Factoring in Sunlight and Location

Now that you have your energy target, the next step is figuring out how many solar panels you’ll need to generate that much power. This is where your location comes into play, specifically a concept called peak sun hours.

This isn't simply how long the sun is in the sky. It's the average number of hours per day when the sunlight is intense enough for your panels to produce their full rated wattage. For instance, a place like sunny Arizona might get 6-7 peak sun hours, while somewhere in the Pacific Northwest might only see 3-4, especially during the cloudier months. You can find maps online that give you a good estimate for your area.

Let’s assume your workshop is in a spot that gets about 4 peak sun hours on average. To find the solar panel wattage you need, just divide your daily energy needs (with the buffer included) by your peak sun hours.

• Formula: Total Daily Watt-Hours ÷ Peak Sun Hours = Required Solar Panel Wattage

• Example: 360 Wh ÷ 4 hours = 90 watts

That calculation shows that a single 100-watt solar panel would be a great fit for this solar powered diy system, giving you enough power to cover your daily use with a bit to spare.

If you want to dig deeper into these calculations or run different scenarios, our complete guide on how much solar you really need breaks it all down even further.

Putting It All Together: Assembling Your Solar Power System

Alright, this is the exciting part. All that planning is about to become a real, working power system you built yourself. With your gear laid out and tools in hand, it's time to assemble your solar powered diy setup. The process itself is pretty methodical, but the real key to success—and not frying your expensive components—is connecting everything in the right order.

Think of the energy flow: it starts at the panels, goes to the battery for storage, and then out to your appliances through the inverter. We're going to follow that path, but with a critical twist in the connection sequence. I'll walk you through not just the "how," but the "why" for each step to make sure your build is both safe and efficient.

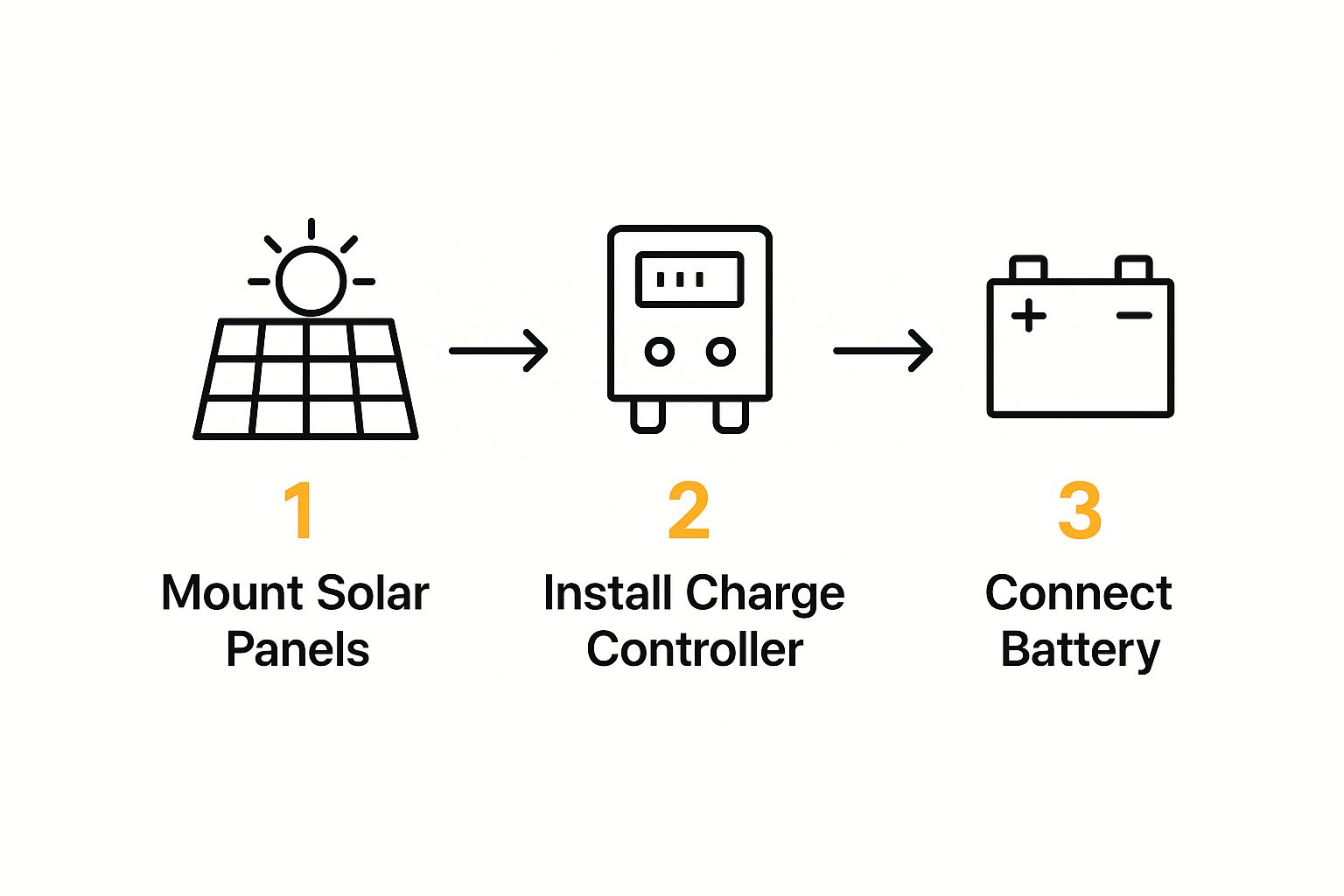

The basic assembly sequence is straightforward: get your panels mounted, install the charge controller, and then hook up your battery.

Following this exact order is non-negotiable. It protects your charge controller by giving it a stable voltage reference from the battery before it has to handle the incoming power from the sun.

Mounting and Wiring Your Panels

First things first, let's get those panels securely mounted. Whether you're putting them on a roof, a ground rack, or the top of a van, make sure the structure is rock-solid and can handle whatever Mother Nature throws at it. Don't forget to orient them for maximum sun—in the Northern Hemisphere, that almost always means facing south.

Once they're mounted, it's time for wiring. For most DIY projects powering a 12V or 24V battery bank, you’ll probably want to wire your panels in parallel. This simple setup keeps the voltage consistent while adding the amps from each panel together, giving you more charging current.

• Parallel: This is the go-to for many. You just connect the positive (+) wire from one panel to the positive of the next, and then do the same for the negative (-) wires.

• Series: This is less common for smaller systems but has its uses. You connect the positive (+) of one panel to the negative (-) of the next. This adds the voltage of the panels together, which can be useful for long wire runs or if your MPPT charge controller requires a higher input voltage.

Always use proper, UV-resistant solar wire (often called PV wire) for any connections that will be exposed to the sun and rain. If you want a deeper dive into the nuts and bolts of the mounting process, you can read our complete guide on how to install solar panels at home.

The Critical Connection Order

Now we're moving inside to wire up the heart of the system. I can't stress this enough: the order you connect these next few components is absolutely critical. Getting it wrong can send a voltage spike straight to your charge controller and kill it instantly.

The Golden Rule of Solar Wiring: Always connect the battery to the charge controller first. The controller needs to read the battery's voltage to set itself up properly. Only then should you connect the panels. When you need to disconnect everything, you do it in the exact reverse order.

Here’s how it should look in practice:

1. Mount Your Gear: Find a good spot for your charge controller and inverter and get them securely mounted. Make sure you leave some space around them for air to circulate—they can get warm.

2. Controller to Battery: Run the correct gauge wires from your battery terminals to the battery inputs on the charge controller. Double-check your polarity (positive to positive, negative to negative). I always install a fuse or circuit breaker on the positive wire, as close to the battery as possible.

3. Panels to Controller: With the battery connected, you can now run the wires from your solar panels down to the PV inputs on the charge controller. Use your multimeter to check the polarity one last time before you plug them in.

4. Inverter to Battery: Finally, connect your inverter. Crucially, this connects directly to the battery terminals, not the "load" outputs on your charge controller. Inverters pull a huge amount of current that will destroy the controller. Again, put an appropriately sized fuse on the positive cable between the battery and the inverter.

What makes these projects so accessible today is the sheer availability of components. Solar isn't just for niche off-gridders anymore. The global market was valued at $189.5 billion in 2022 and is expected to hit a staggering $607.8 billion by 2030, which is fantastic news for DIYers looking for affordable, high-quality parts.

System Safety Checks and Final Testing

Alright, let's talk about the most important step. You’ve done the hard work, but before you flip a single switch on your new solar powered DIY system, we need to walk through a careful safety check. This isn't just a recommendation; it's what keeps you and your expensive new gear safe.

Think of fuses and circuit breakers as your system's first line of defense. They are designed to be the weak link. In the event of a short circuit or an overload, they’ll blow, sacrificing themselves to save your charge controller or inverter from catastrophic failure. Trust me, never skip them.

Personal and Component Protection

Before you touch a single wire for the final tests, it's time to gear up. Working around batteries and live circuits demands respect, and that starts with Personal Protective Equipment (PPE).

• Safety Glasses: Wear them. Always. You never know when a battery might decide to act up.

• Insulated Gloves: These are your best friend, creating a crucial barrier between your skin and any live electrical parts.

• No Jewelry: Take off any metal rings, necklaces, or watches. Metal conducts electricity beautifully, and the last thing you want is to become part of the circuit.

Proper grounding is another layer of safety you can't ignore. The ground wire gives any stray electricity a safe path to follow, which prevents the metal frames of your equipment from becoming energized and posing a serious shock risk. For most small off-grid setups, this simply means running a wire from the negative terminal of your battery bank to a designated chassis ground point.

Battery Safety Insight: A quick but critical note if you're using flooded lead-acid batteries: they need to breathe. The charging process releases hydrogen gas, which is extremely explosive. Make sure they’re housed in a well-ventilated enclosure, far away from any potential sparks.

The Final Multimeter Test

Got your safety gear on? Fuses correctly installed? Great. Grab your multimeter, because it’s time for the moment of truth. This final check confirms everything is wired correctly before you put any real power through it.

Set your multimeter to the DC voltage setting. Now, you’re going to be a detective, methodically checking the voltage at all the key points in your system. You're verifying two things: the voltage level and the polarity (that positive is positive and negative is negative).

Check the output from your solar panels, the voltage right at the battery terminals, and finally, the input voltage at both your charge controller and your inverter. If you get a reading that’s reversed or doesn't look right, stop immediately. Don’t power anything on. Go back and double-check all of your wiring connections.

Once every voltage and polarity checks out, you can finally power up the inverter. Plug in a small appliance, like a shop light or a small fan, to test it out.

Congratulations—you've just safely built, tested, and commissioned your very own solar power system.

Common Solar DIY Questions Answered

When you first dip your toes into the world of DIY solar, you’re bound to have some questions. It’s only natural. Getting solid answers is what keeps a project moving forward, so let’s tackle a few of the most common ones I hear from folks just starting out.

What's the Best First Project for a Beginner?

The number one question I get is, "Where do I even start?" My go-to recommendation is always a small, portable solar generator. It’s the perfect learning project.

You get a real feel for how all the components work together without being overwhelmed. A typical starter setup like this includes:

• One 50 to 100-watt solar panel

• A basic charge controller

• A 20-50Ah sealed AGM or lithium battery

• A small 150-300W pure sine wave inverter

This simple system is powerful enough to charge your phone and laptop or run some LED lights during a power outage or on a camping trip. It's relatively affordable, and the confidence you'll gain from building it successfully is priceless.

Can I Connect My DIY System to the Grid?

This is a big one. It's tempting to think you can just hook your panels into your home's main electrical system, but it's far more complicated than that. Tying into the grid requires specialized equipment, like grid-tie inverters, and you absolutely need permits and inspections from your local utility company.

For both safety and legal reasons, I strongly advise against attempting a grid-tie connection as a pure DIY project. Without a licensed professional and explicit approval from your utility, it's just not worth the risk. This guide is all about building safe, effective off-grid systems.

How Do I Figure Out My Project's Payback Period?

Everyone wants to know when their investment will pay for itself. The math is actually pretty straightforward.

First, tally up the total cost of your components: panels, battery, charge controller, inverter, wiring—everything.

Next, figure out the value of the electricity you're generating. For an off-grid setup, this might be the money you save on gas for a generator. If you're using it to offset some of your home's power usage, you'll need to estimate the kilowatt-hours (kWh) your system produces each year and multiply that by what your utility charges per kWh.

Just divide your total initial cost by your annual savings. The result is your payback period in years, giving you a clear idea of when your solar powered DIY project officially pays for itself.
