Your Guide to an Off Grid Solar Electric System

So, what exactly is an off-grid solar electric system? At its heart, it’s a completely self-sufficient power station for your home, totally disconnected from the public utility grid. It's designed to generate, store, and deliver all the electricity you need using solar panels and a battery bank. Think of it as true energy freedom.

Understanding Your Personal Power Plant

The easiest way to wrap your head around this is to imagine having your own private water well instead of being hooked up to city water.

Your solar panels are the well, drawing energy from an endless source—the sun. This energy then fills up a large storage tank—your battery bank—so you have plenty of power to use day or night, rain or shine. You're entirely responsible for this system, but in return, you're free from monthly bills and service interruptions. The entire setup is built for one purpose: to make you the sole provider and manager of your home's electricity.

This idea of energy independence is catching on in a big way. The global market for solar energy systems is expected to hit USD 296.77 billion in 2025 and is projected to soar to USD 1,146.25 billion by 2034. That's a massive shift toward self-reliant, renewable power. You can dive deeper into these numbers in the latest solar market research from Precedence Research.

The Core Idea of Energy Independence

Unlike grid-tied systems that maintain a connection to a utility company, an off-grid solar electric system cuts that cord completely. This means:

• No more electricity bills. Period. You generate 100% of your own power.

• Immunity to grid blackouts. When the neighborhood goes dark, your lights stay on.

• Total control and responsibility. You're in charge of your energy production and consumption.

This is the key difference. A grid-tied system uses the utility as a giant, shared battery—sending them your excess power and pulling it back when you need it. An off-grid setup has to do it all on its own.

To make this distinction crystal clear, here’s a quick side-by-side comparison.

Off-Grid vs. Grid-Tied Solar At a Glance

As you can see, the choice between off-grid and grid-tied really comes down to your primary goals—whether that's complete self-sufficiency or simply lowering your monthly energy costs.

An off-grid system isn’t just about having solar panels; it’s a complete ecosystem where you generate, store, and manage every watt of electricity your home uses. It is the ultimate expression of energy self-reliance.

Ultimately, you become your own utility company. This requires a bit more planning and a realistic understanding of how much energy you actually use, but the payoff is an unmatched level of independence. The journey starts when you stop seeing your home as just a consumer of electricity and start seeing it as a self-sustaining power station.

Meet the Core Components of Your Power Plant

An off-grid solar system isn't just about the panels on your roof. It's a carefully balanced ecosystem where every single part plays a critical role. Think of it like building a personal power plant—each component works in perfect harmony to turn raw sunlight into the reliable electricity that runs your life, day and night.

Instead of just a dry list of parts, let's get to know the key players and the jobs they do. Understanding how they all work together is the real secret to appreciating the elegant power of your own private utility.

The Energy Harvesters: Solar Panels

Your solar panels, technically called photovoltaic (PV) modules, are the silent workers on the front lines. Their one and only job is to soak up sunlight and, through a bit of physics magic, convert it directly into Direct Current (DC) electricity. They are the absolute foundation of your system. Without them, there's no power to manage, store, or use.

The more direct sunlight they get, the more energy they pump out. This output, measured in watts, is the raw fuel for everything else down the line.

The Battery Guardian: The Charge Controller

From the panels, that DC electricity flows directly to the charge controller. This device is the unsung hero of the entire setup, acting as a smart, vigilant gatekeeper for your battery bank. Its most important job is to protect your most expensive investment—the batteries—from the serious damage of overcharging.

A charge controller constantly reads the voltage coming from the panels and checks the battery's charge level. It then carefully regulates the current flowing into the batteries, slowing it to a trickle as they get full. This simple act prevents permanent damage and can literally add years to the life of your battery bank. It's what separates a system that lasts a decade from one that fails in a year.

Without a charge controller, you're essentially pouring water into a glass with no one watching. Eventually, it will overflow and make a mess. In an electrical system, that "mess" is a damaged, and potentially dangerous, battery.

This kind of reliability is a huge reason the global off-grid solar market is growing so quickly. From China leading panel production in the Asia Pacific to Germany pushing solar capacity in Europe and the US market in North America, this growth is built on dependable components. You can find more details on this trend in the global off-grid solar market report from Fortune Business Insights.

The Energy Reservoir: The Battery Bank

If the panels are the harvesters, the battery bank is your personal energy reservoir. This is where all the DC power generated during the sunny hours gets stored for later. It's what keeps your lights on after dark, your fridge cold during a storm, and your home powered through a long stretch of cloudy days.

The size and chemistry of your battery bank directly determine your "days of autonomy," or how long you can live comfortably without any sun. This is the component that truly gives you self-sufficiency. Today, there are two main choices:

• Lead-Acid Batteries: The traditional, budget-friendly option. They have a proven track record but a shorter lifespan (around 5-7 years) and need some light, regular maintenance.

• Lithium-Ion Batteries: The modern, high-performance alternative. While they cost more upfront, they can last 10-15 years or more, are completely maintenance-free, and can be drained much deeper without causing damage.

The Power Translator: The Inverter

The final piece of this electrical puzzle is the inverter. The power your panels create and your batteries store is all DC electricity. The problem? Nearly every appliance you own—from the coffee maker and TV to your laptop charger—runs on Alternating Current (AC) electricity.

The inverter's job is to be a universal translator. It takes that stored DC power from your batteries and skillfully converts it into the stable AC power your home needs. It's the essential bridge between your solar power plant and your everyday life, making all that captured energy usable. Without it, none of your standard appliances would work.

How to Correctly Size Your Off-Grid System

Sizing an off-grid solar electric system is less about guesswork and more about careful accounting. Honestly, this is the single most critical step in your journey toward energy independence. If you get it right, your system will be a reliable partner that effortlessly powers your lifestyle. Get it wrong, and you're in for constant frustration, unexpected power shortages, and even the risk of damaging expensive components.

Think of it as creating a detailed budget, but for energy instead of money.

The entire process really boils down to one fundamental question: how much electricity do you actually use each day? Answering this with precision is the key that unlocks all the other calculations, from how many solar panels you need to the size of the battery bank that will carry you through cloudy weather.

Start With a Household Energy Audit

Your first task is to conduct a personal "energy audit." This means making a complete inventory of every single appliance and device in your home that pulls a current. You'll need to figure out its power consumption in watts and how many hours you use it on an average day. This isn't just about the big stuff like a refrigerator or a well pump; it includes everything from your phone charger to your electric toothbrush.

For each item, you need two key pieces of information:

• Power Consumption (Watts): This is usually found on a sticker or label on the back or bottom of the appliance. If it only lists amps and volts, you can calculate watts by multiplying the two (Watts = Volts x Amps).

• Daily Hours of Use: Be realistic here. How long is your TV really on? How many hours does that space heater run in the winter? Honesty is crucial for an accurate final number.

Once you have these two figures for an appliance, you just multiply them to find its daily energy consumption in watt-hours (Wh). For example, a 100-watt television used for 4 hours a day consumes 400 watt-hours daily (100W x 4h = 400Wh). You'll do this for every single electrical load in your home.

Calculating Your Total Daily Load

After you've audited every appliance, simply add up all the individual watt-hour figures. This final sum is your total daily energy consumption. It represents the absolute minimum amount of energy your system must generate and store every single day to meet your needs.

To make this process easier, you can create a simple worksheet. Here’s a quick look at what that might entail.

Sample Appliance Energy Audit Worksheet

The example above shows a daily need of 2,815 Wh, or about 2.8 kilowatt-hours (kWh). This is the foundational number for sizing your entire system. For a more detailed breakdown and tools to help you, check out our complete guide on how much solar you might need for your specific situation.

It's a common and costly mistake to underestimate your energy needs. Always round up your estimates and add a buffer of at least 20-25% to account for system inefficiencies and future growth. A system built for your exact needs today will be too small tomorrow.

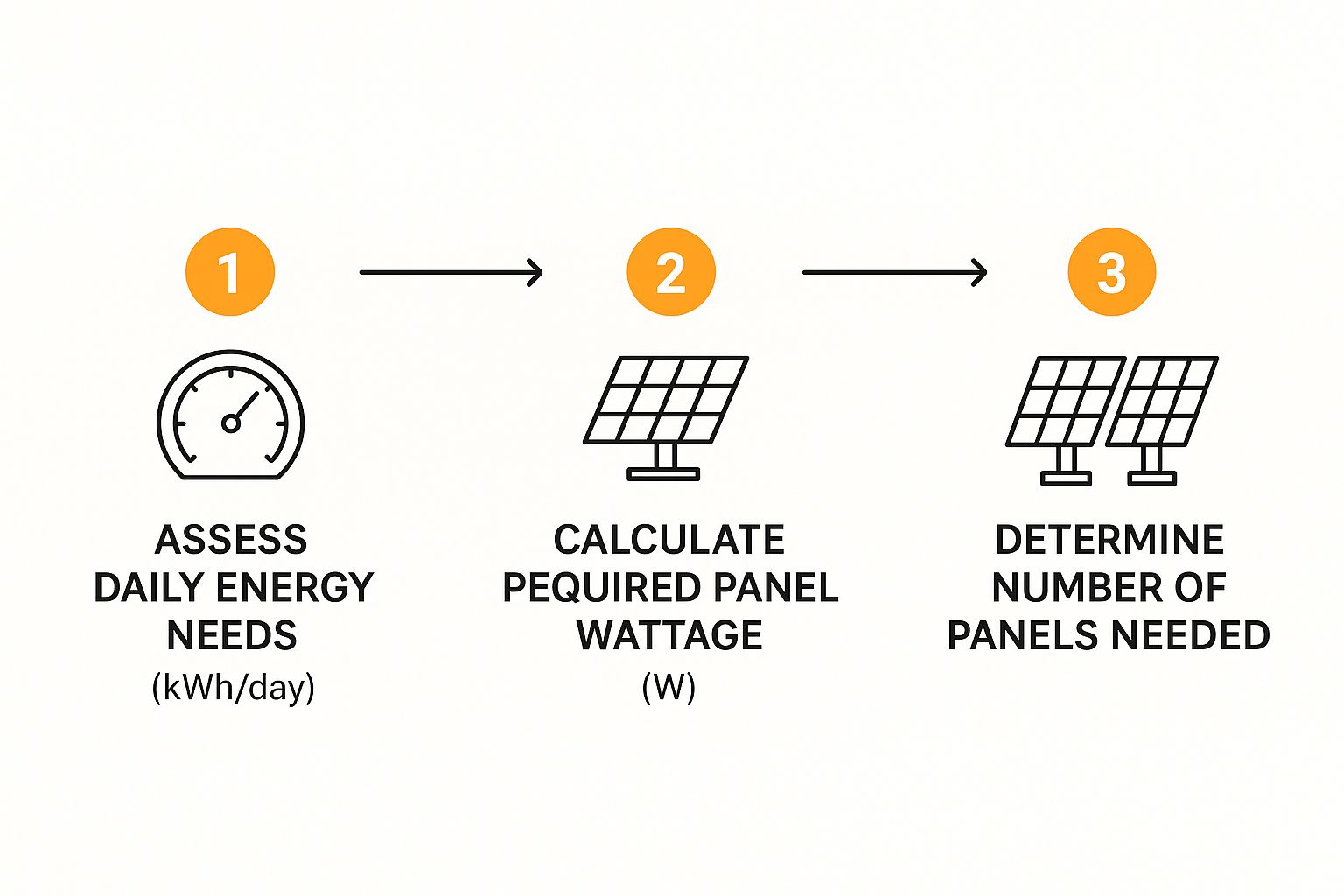

This visual gives you a great, high-level look at how your energy needs translate directly into the hardware you'll buy.

As the image shows, the process is pretty logical. Your daily kWh consumption is what dictates the total solar panel wattage required to replenish that energy each day.

From Energy Needs to System Components

With your total daily watt-hours calculated, you can finally start sizing the two most important parts of your system: the solar array and the battery bank.

• Sizing Your Solar Array: The goal here is simple. Your solar panels need to produce enough energy in a single day to cover your total consumption and fully recharge your batteries. This calculation depends heavily on where you live and the average "peak sun hours" you get. A home in sunny Arizona will need fewer panels than one in cloudy Washington to produce the same amount of power.

• Sizing Your Battery Bank: Your battery bank has to be large enough to store sufficient energy to power your home when there's no sun. We call this "days of autonomy." A standard recommendation is to size your bank to cover 3-5 days without any solar input, ensuring you have reliable power during extended storms or cloudy spells.

Taking the time to accurately calculate your energy usage from the very beginning ensures that every component is correctly sized to create a balanced, reliable, and frustration-free off-grid solar system.

Budgeting for Your Energy Independence

Let's talk about the money. Going off-grid is an amazing feeling, but it's also a serious financial undertaking. Nailing down a realistic budget is every bit as important as sizing your system correctly. If you know where every dollar is going from the start, you can build a financial plan that truly fits your energy goals and avoid those nasty, expensive surprises later on.

The final price tag is really a combination of a few big-ticket items, all the essential gear that supports them, and the cost of getting it all put together.

The Primary Component Costs

Most of your budget will be eaten up by the core components. The price for this hardware can swing wildly depending on the brands you trust, the quality you demand, and the overall power you need for your off-grid life.

Here are the four main pieces you'll be spending the most on:

1. Solar Panels: The cost here is all about a price-per-watt. Prices have thankfully come down over the years, but it’s simple math: a bigger system needs more panels, and that means a higher cost.

2. Inverter: This is the brains of the operation, and you'll want a high-quality pure sine wave inverter to keep your sensitive electronics safe. This isn't just a recommendation; it's a must. The more power it can handle, the more it will cost.

3. Charge Controller: Think of this as the guardian of your expensive battery bank. This is not the place to skimp. A more efficient MPPT controller costs more upfront than a basic PWM model, but it can squeeze significantly more power out of your panels, paying for itself over time.

4. Battery Bank: For most people, this is the single most expensive piece of the entire system. The final price is tied directly to the battery chemistry you choose and the total storage capacity you need.

That choice of battery technology is probably one of the biggest decisions you'll make, affecting not just your initial bill but your long-term costs, too.

The Great Battery Debate: Lead-Acid vs. Lithium

Your battery bank is the heart of your off-grid system, and the technology you pick has huge consequences for your budget, daily performance, and how soon you'll need to replace it.

Traditional lead-acid batteries have been the go-to budget option for decades. They have a much lower upfront cost, but they come with trade-offs. You'll be looking at a shorter lifespan, usually around 5-7 years, and they require regular maintenance, like topping off water levels.

On the other hand, modern lithium-ion batteries (specifically the Lithium Iron Phosphate or LiFePO4 type) are a much bigger initial investment. The payoff? They last far longer, often 10-15 years or more, are completely maintenance-free, and you can use more of their stored energy without causing damage.

While lithium batteries have a higher sticker price, their extended lifespan and superior performance often result in a lower total cost of ownership over the life of your system.

Balance of System and Installation Costs

Beyond the "big four" components, you have to account for all the other parts that tie the system together. We call this the Balance of System (BOS), and it covers all the necessary but less glamorous hardware.

• Wiring and Fusing: You can't cut corners here. High-quality, properly sized copper wiring is non-negotiable for safety and efficiency. This category also includes all your breakers, fuses, and disconnect switches.

• Racking and Mounting: This is the skeleton that holds your panels, whether on the roof or on a ground mount. The cost will depend on the type of mount you use and how complex the job is.

• Labor Costs: Hiring a pro will add to the total, but it also buys you peace of mind. A professional installation ensures your system is safe, runs efficiently, and meets any local codes. Going the DIY route saves money on labor but demands serious electrical know-how and comes with its own set of risks.

In the end, the total cost of an off-grid solar system is a direct reflection of your energy appetite and your standards for quality. A large, powerful system built with premium parts and installed by a certified crew will, of course, cost much more than a small setup you tackle yourself.

To get a more concrete idea of what to expect, check out our guide on the average solar system cost. Planning your budget with care is the best way to make sure your journey to energy independence is a smooth and sustainable one.

Key Installation and Placement Strategies

This is where the rubber meets the road—turning your careful plans into a physical, working power plant. The decisions you make during installation are what truly separate a highly efficient system from one that constantly underperforms. It’s about more than just bolting panels to a roof; it's about setting up every component to work in harmony from the very first day.

The success of your entire off grid solar electric system really boils down to one thing: sunlight. Your panels need as much direct, unblocked sun as they can get. You'd be surprised how much even a little shade from a tree branch or chimney can cripple your power output. Think of it like a kink in a garden hose—the whole flow slows to a trickle.

That’s why picking the right spot is your first and most critical job. You're looking for a location that stays completely free of shadows all day, especially during those prime sun hours between 9 AM and 3 PM.

Maximizing Your Solar Harvest

Once you've scouted the perfect sun-drenched spot, the next step is to orient your panels for peak performance. This comes down to two key adjustments: azimuth and tilt.

• Azimuth (Direction): If you're in the Northern Hemisphere, your panels need to face true south—not magnetic south—to catch the most sun as it arcs across the sky. For those in the Southern Hemisphere, you'll want to face them true north.

• Tilt Angle: The best angle for your panels actually changes with the seasons. A steeper angle is great for grabbing the low winter sun, while a flatter angle works better for the high sun of summer. For a simple fixed system, a good rule of thumb is to set the tilt angle to match your property's latitude. This gives you a solid, year-round average.

If you're really looking to squeeze every last watt out of your array, adjustable mounts are the way to go. They let you tweak the tilt angle a few times a year. It's a bit more hands-on, but it can boost your annual energy production by a significant amount, especially if you live somewhere with dramatic seasons.

The difference between a poorly placed panel and a perfectly oriented one can slash your energy output by as much as 25-30%. Getting the placement right is one of the most powerful things you can do to maximize your investment without spending another dollar.

Prioritizing Safety During Installation

Let's be clear: an off-grid solar system deals with a serious amount of electricity. Safety isn't just a suggestion; it's absolutely essential. Whether you hire a pro or decide to DIY, you have to know the safety basics to protect yourself, your home, and your expensive equipment.

The single most important rule is to wire everything in the proper order. This simple discipline prevents dangerous electrical arcs and keeps you from accidentally frying your charge controller.

The Correct Wiring Sequence:

1. Connect the charge controller to the battery bank first. This lets the controller "wake up" and see the battery's voltage so it can calibrate itself.

2. Next, connect your solar panel array to the charge controller.

3. Finally, connect your DC loads or the inverter to the battery bank.

When you need to shut things down for maintenance, just do it all in reverse. For a more detailed walkthrough, check out our guide on the solar panel installation process. Following these critical steps will ensure your off-grid system is not only powerful and efficient but also safe for the long haul.

Long-Term Care for Your Solar System

So, your new off-grid solar electric system is up and running. That’s fantastic! But to make sure it serves you well for decades, it needs a little bit of attention. Think of it like a car—you wouldn’t drive it for years without checking the oil, right? A few simple, routine checks are all it takes to protect your investment and keep the lights on.

Setting up a basic maintenance routine is the best way to catch small issues before they snowball into big, expensive problems. It also ensures your system is always running at peak efficiency, squeezing every possible watt from the sun and extending the life of your components. This small commitment is what protects your energy independence long-term.

Your Routine Maintenance Checklist

Just like any hard-working piece of equipment, your system thrives on regular care. You don't need to be a certified technician for this; a simple seasonal or semi-annual schedule is usually all you need to keep everything in prime condition. Most of these tasks only take a few minutes but make a world of difference.

Here’s a simple checklist to get you started:

• Panel Inspection and Cleaning: Your panels can't do their job if they're covered in grime. Give them a periodic cleaning with a soft brush and some water to wash away dust, pollen, and bird droppings. A clean panel can be up to 20% more efficient than a dirty one. While you're up there, give them a quick visual check for any cracks or damage.

• Battery Terminal Check: This one is a critical safety step. A couple of times a year, pop the caps and inspect your battery connections. Look for any corrosion—it’ll look like a white, crusty buildup—and confirm that every connection is snug. Loose connections can get hot, waste power, and are a potential fire hazard.

• Wiring and Component Inspection: Do a quick walkthrough and eyeball all the visible wiring. You’re looking for anything that looks frayed, chewed on by rodents, or otherwise damaged. Also, make sure your inverter and charge controller are free from dust, which can lead to overheating.

Monitoring for Optimal Health

Beyond the physical checks, your most powerful long-term care tool is simply paying attention. Get familiar with your system monitor, whether it’s a dedicated meter like a Bogart Engineering Trimetric or the built-in display on your inverter. You'll quickly get a feel for what "normal" looks like for your system's daily power production and battery voltage.

A sudden, unexplained drop in performance is often the first warning sign something is wrong. By keeping an eye on your numbers, you can spot things like a newly shaded panel or a struggling component long before they take your whole system down.

This habit of consistent monitoring, combined with a simple hands-on maintenance schedule, is the real secret to a reliable, long-lasting off-grid system. It’s these easy practices that will make your journey to energy independence a successful and stress-free one.

Answering Your Top Off-Grid Solar Questions

Deciding to go off-grid is a huge step, and it's completely natural to have a lot of questions. Honestly, getting these answers sorted out upfront is the most important thing you can do. It’s what separates a successful, reliable power system from a constant source of headaches.

Let’s dive into some of the most common things people ask when they're first exploring energy independence.

How Many Cloudy Days Can My System Really Handle?

This is probably the number one concern, and for good reason. The answer lies in a concept called "days of autonomy," which is just a practical way of saying how long your home can run on pure battery power with zero help from the sun.

Think of your battery bank as a water tank. A properly designed system doesn't just store enough for one rainy day; it's built to get you through a long, dark storm. Most setups are planned with 3 to 5 days of autonomy, giving you a deep reservoir of power to ride out extended periods of overcast weather without a single flicker.

Can I Add More Panels or Batteries Later On?

Absolutely, but this is something you have to plan for from day one. You can't just tack on more equipment later if your core components aren't ready for it. Scalability is everything.

This means you might choose a charge controller or an inverter that’s a bit bigger than what you need right now. It might cost a little more initially, but it’s a brilliant move for the long haul. It allows you to easily expand your solar array down the road without having to rip out and replace the expensive brains of your system. Trust me, it's far cheaper to oversize your electronics now than to buy them all over again in a few years.

What Are the Biggest Mistakes People Make?

Knowing what not to do is just as critical as knowing what to do. Steering clear of these common blunders will save you a world of frustration and a lot of money.

• Under-sizing the System: This is the most common—and most expensive—mistake by a long shot. Always, always do a detailed energy audit of your usage. Then, add a 20-25% buffer to give yourself some wiggle room for system inefficiencies or that new appliance you might want later.

• Buying Cheap, Low-Quality Gear: It's tempting to cut costs with no-name, uncertified components, but it almost always backfires. You're risking poor performance, early equipment failure, and even serious safety hazards.

• Forgetting About Maintenance: An off-grid solar system isn’t like a toaster you plug in and forget. It needs a little care. Simple things, like keeping your panels clean and checking on your battery terminals, are crucial for keeping it running at peak performance for decades.

The global push for dependable off-grid power is more than just a trend; it's a necessity. To provide universal energy access by 2030, investment in off-grid solar needs to increase six-fold. That’s about USD 21 billion in additional funding to keep 660 million people from being left in the dark. You can read the full World Bank analysis on this global challenge.
